TR-D8121IR3 v7 2.8
Ses:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
KüreWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.8Ağırlık Net (kg):
0.38 / 0.48Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 256GBGiriş koruması:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
5.5WBoyutlar (mm):
Ø93 x 92.2Güç tüketimi, Watt:
DC: 3.5W PoE: 5.5WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H110°±5°, V60°±5°

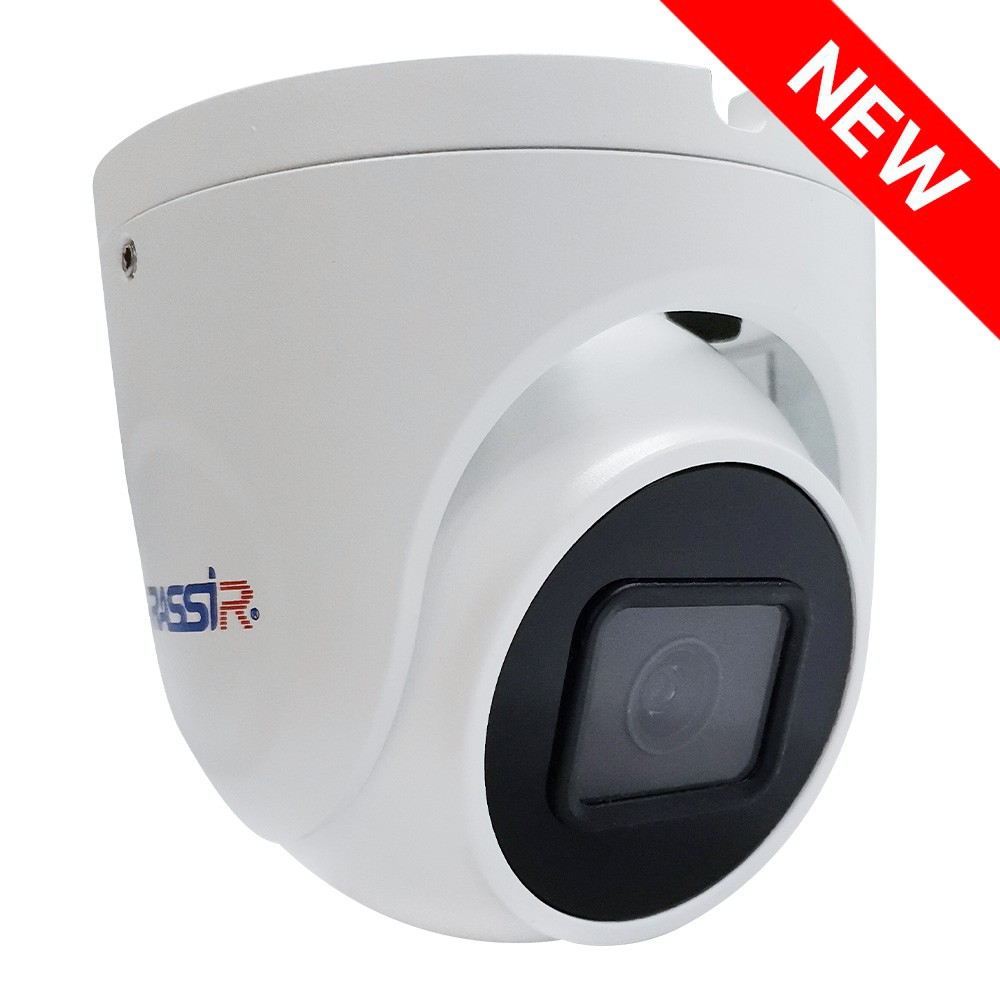

The 2 MP (1920×1080) IP camera TRASSIR TR-D8121IR3 v7 2.8 is designed for outdoor use in areas with direct access, at any time of year and day. Its metal body is protected against moisture and dust according to the IP66 standard and against mechanical impacts according to the IK10 standard. The operating temperature range is –40 °C to +60 °C. Lightning protection is provided by a TVS 4000 V device. The integrated IR illumination has a range of 30 meters.
Parameters:
- Blackface IR illumination technology
- Detection of people, vehicles, line crossing, and area entry and exit
- Real WDR 120 dB — reduces the effects of multi-contrast lighting on image quality
- 3D DNR — spatial noise reduction for clearer images
- Corridor mode — optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Fixed 2.8 mm lens with a 110° horizontal and 60° vertical viewing angle, aperture F/1.6
- Mechanical IR filter — blocks infrared rays when there is sufficient light
- Compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB; hot-swappable card
- Network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.5 W
- Dimensions: Ø93 × 92.2 mm
- Weight: 380 g
