TR-D4121IR1 v7 2.8
Ses:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 15 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
KubbeWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.8Ağırlık Net (kg):
0.31 / 0.40Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 256GBGiriş koruması:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
3.6WBoyutlar (mm):
Ø102.20 x 56.38Güç tüketimi, Watt:
DC: 3.0W PoE: 3.6WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H110°±5°, V60°±5°

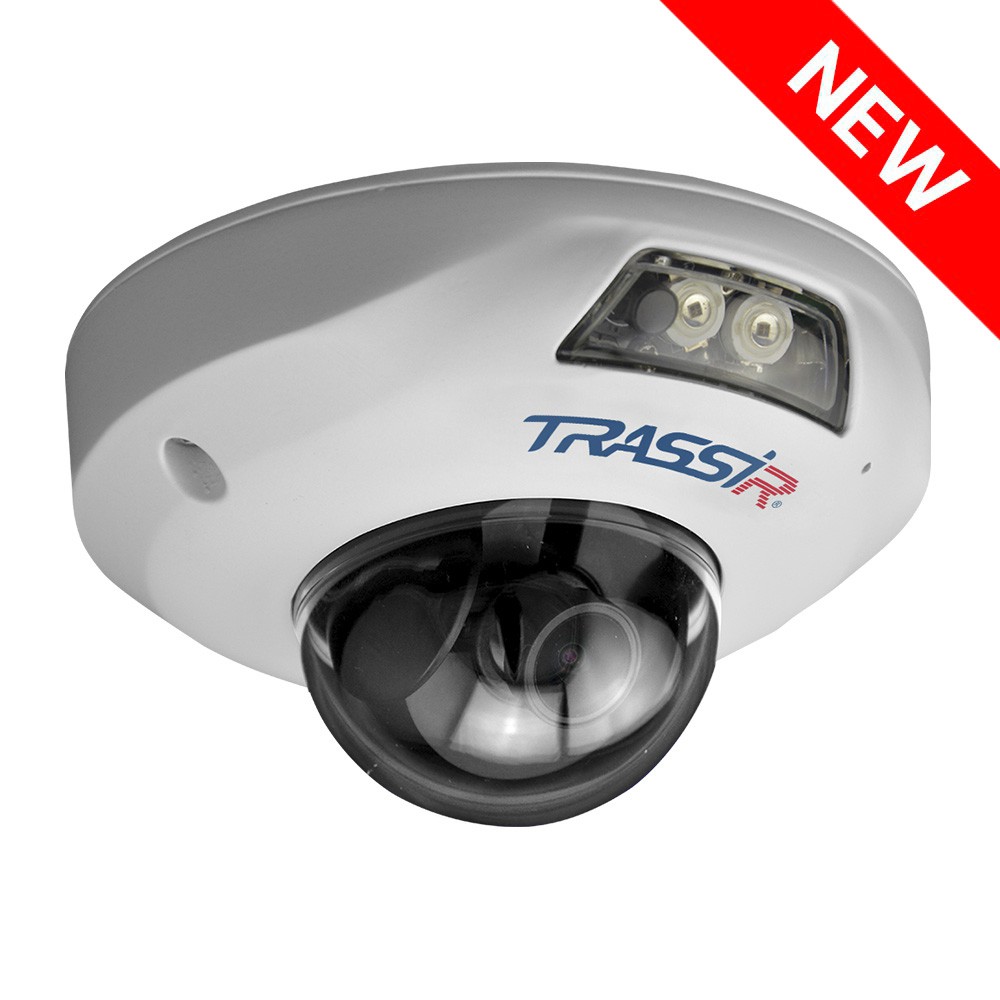

The TRASSIR TR-D4121IR1 v7 2.8 is a 2 MP (1920×1080) IP camera designed for outdoor installation in areas with direct public access, ensuring reliable performance year-round, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates in a temperature range of –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 15 meters.
Parameters:
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality in scenes with high dynamic range
- 3D DNR – spatial noise reduction for enhanced low-light performance
- Corridor mode – optimized for vertically oriented video capture
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 2.8 mm lens with 110° horizontal and 60° vertical viewing angles, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when ambient lighting is sufficient
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.0 W
- Dimensions: Ø102.20 × 56.38 mm
- Weight: 310 g
