TR-D7121IR1 v7 3.6
Ses:
built-in microphone / built-in speakerWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 10 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
KüpWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
3.6Ağırlık Net (kg):
0.095 / 0.220Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 256GBIR:
YesCase material:
PlasticVideo input:
NoYıldırımdan korunma:
NoPower PoE:
2.9WBoyutlar (mm):
129 x 99 x 60Güç tüketimi, Watt:
DC: 2.0W PoE: 2.9WÇalışma sıcaklığı, C°:
-10°C … +50°CField of view:
H88°±5°, V48°±5°

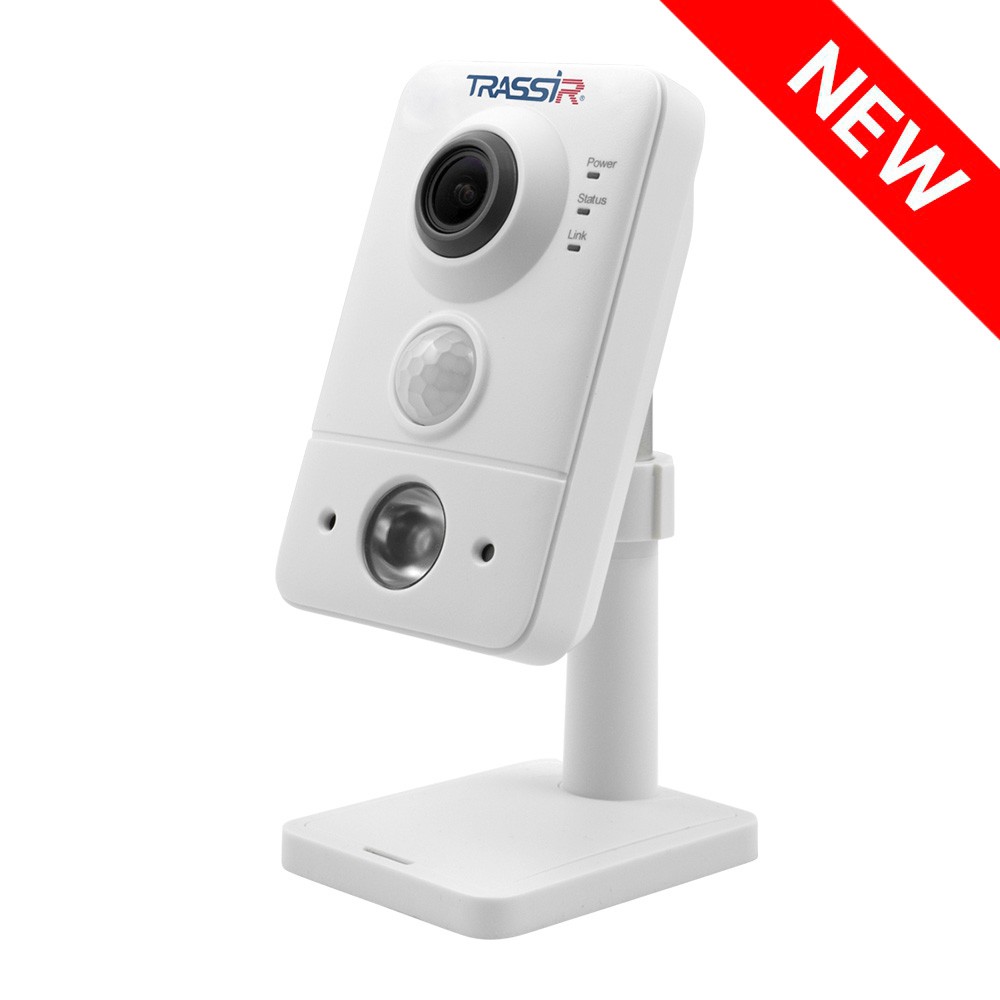

The indoor 2 MP (1920×1080) IP camera TRASSIR TR-D7121IR1 v7 3.6 features IR illumination with a 10 m range for night video surveillance, a built-in microphone and speaker for two-way audio communication, and a PIR sensor for motion detection based on thermal changes. The camera supports advanced analytics including human motion detection, virtual line crossing detection, and intrusion detection.
Parameters:
- Detection of people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB — reduces the impact of multi-contrast lighting on image quality
- 3D DNR — spatial noise reduction for clearer images in low light
- Corridor mode — optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Mechanical IR filter — blocks infrared rays when there is sufficient light
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB
- Fixed 3.6 mm lens with a 88° horizontal and 48° vertical viewing angle, aperture F/1.6
- RJ-45 network port
- microSD slot supporting up to 256 GB
- Power connector
- Power supply: 12 V DC or PoE
- Maximum power consumption: 2 W
- Dimensions: 129 × 99 × 60 mm
- Weight: 95 g
- Operating temperature range: –10 °C to +50 °C
