TR-D3123ZIR3 v7 2.7–13.5
Ses:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
KubbeWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Ağırlık Net (kg):
0.46 / 0.59Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 256GBGiriş koruması:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
7.6WBoyutlar (mm):
Ø116.10 x 96.51Güç tüketimi, Watt:
DC: 6.5W PoE: 7.6WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H102°-34°±5°, V54°-20°±5°

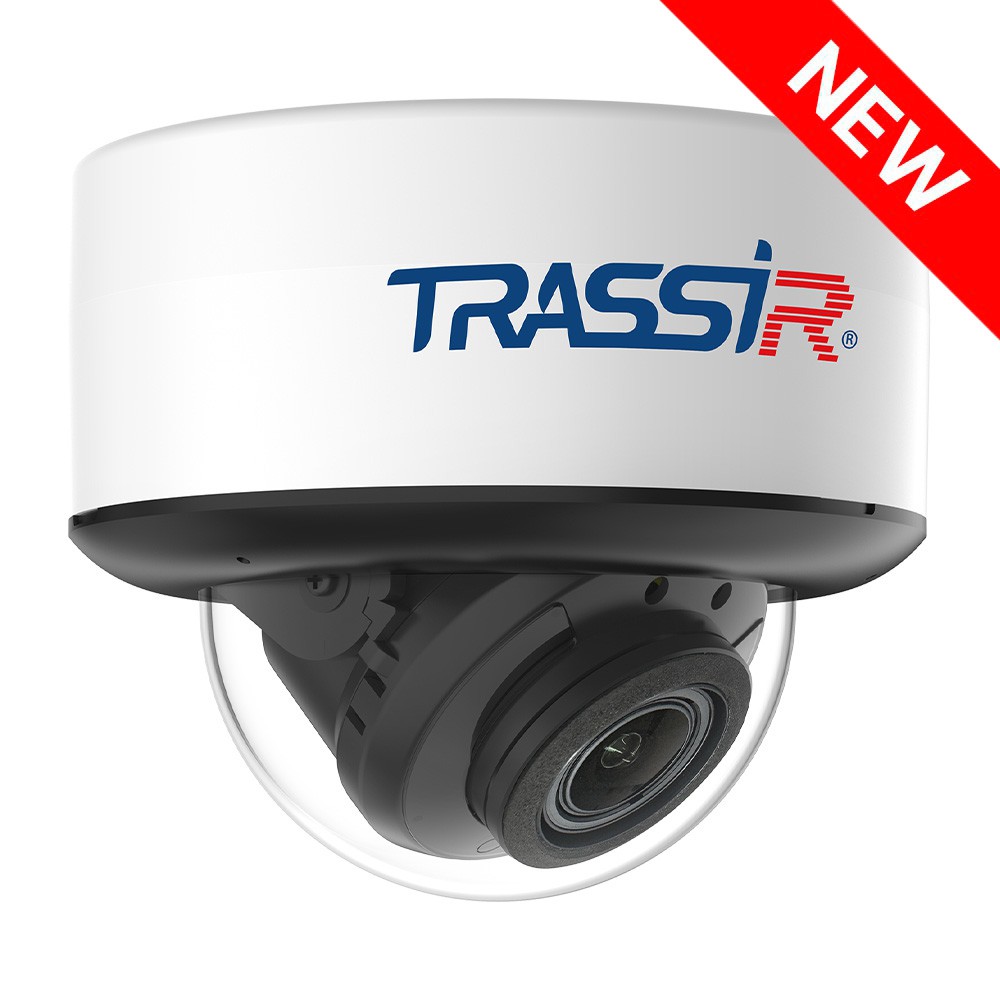

The TRASSIR TR-D3123ZIR3 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, providing dependable operation in all weather conditions, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates in a wide temperature range from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – enhances image quality in high-contrast lighting conditions
- 3D DNR – spatial noise reduction for clearer images in low light
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Vari-focal lens (2.7–13.5 mm) with horizontal viewing angles of 102° to 34°, vertical angles of 54° to 20°, and F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when sufficient ambient lighting is available
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 6.5 W
- Dimensions: Ø116.10 × 96.51 mm
- Weight: 460 g
