TR-D2123ZDL6 v7 2.8-12
Ses:
audio in/out 1/1 / built-in microphoneWDR:
WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 60 mDigital noise Reduction:
3D DNRCorridor mode:
NoBiçim katsayısı:
İnce uzunWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.8 - 12Ağırlık Net (kg):
0.82 / 0.98Duyarlılık:
0.005Lux(F1.6)Yerel depolama:
MicroSD up to 512GBGiriş koruması:
IP67IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
7.58WBoyutlar (mm):
Ø74.5 x 215.8Güç tüketimi, Watt:
DC: 6.8W PoE: 7.58WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H102.5˚, V55˚Class PoE:
802.3af/at

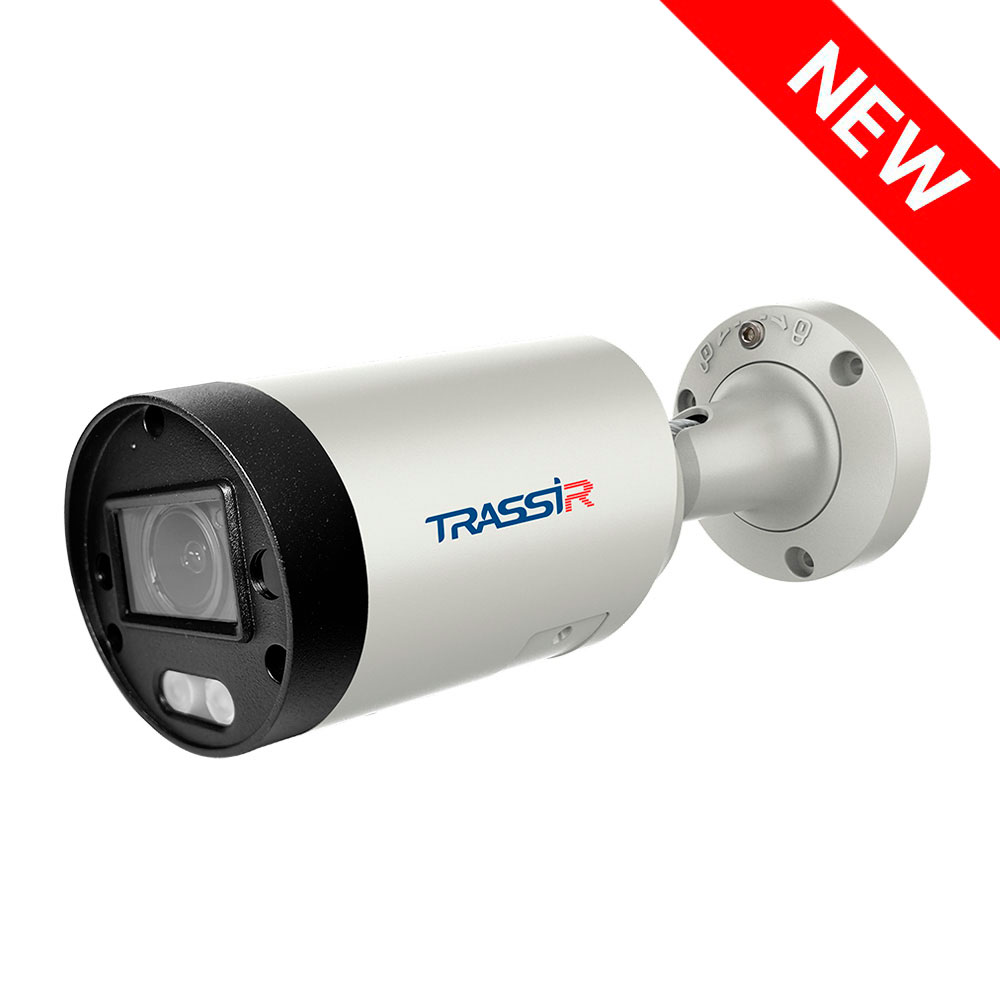

TRASSIR TR-D2123ZDL6 v7 2.8-12 is an outdoor cylindrical camera featuring dual intelligent illumination for 24/7 video monitoring. Equipped with a 1/2.9" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). The 2.8-12 mm varifocal lens provides horizontal viewing angles of 92.2°–33.1° and vertical angles of 43.5°–16.5°, allowing wide or close-up shots as needed. Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions.
The camera offers IR and warm white LED illumination, each with a range of up to 60 meters, enabling detailed video capture in low-light environments. It also supports hardware analytics, including people detection, line crossing detection, area monitoring, and vehicle detection.
For efficient video transmission, the camera supports H.265+ and H.264+ codecs with a maximum bitrate of 8 Mbps. Local recording is supported via a microSD card of up to 512 GB. Power can be supplied via 802.3af PoE or 12V DC.
Designed for durability, the IP67-rated enclosure operates in temperatures from -40°C to +60°C and includes 6000V TVS protection. The camera is compatible with multiple network protocols, including Onvif.
