TR-D2123ZIR6 v7 2.7–13.5
Ses:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 60 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
İnce uzunWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Ağırlık Net (kg):
0.635 / 0.830Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 256GBGiriş koruması:
IP67, IK08IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
10.9WBoyutlar (mm):
234.3 x 77.5 x 75.3Güç tüketimi, Watt:
DC: 9.8W PoE: 10.9WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H102°-34°±5°, V54°-20°±5°

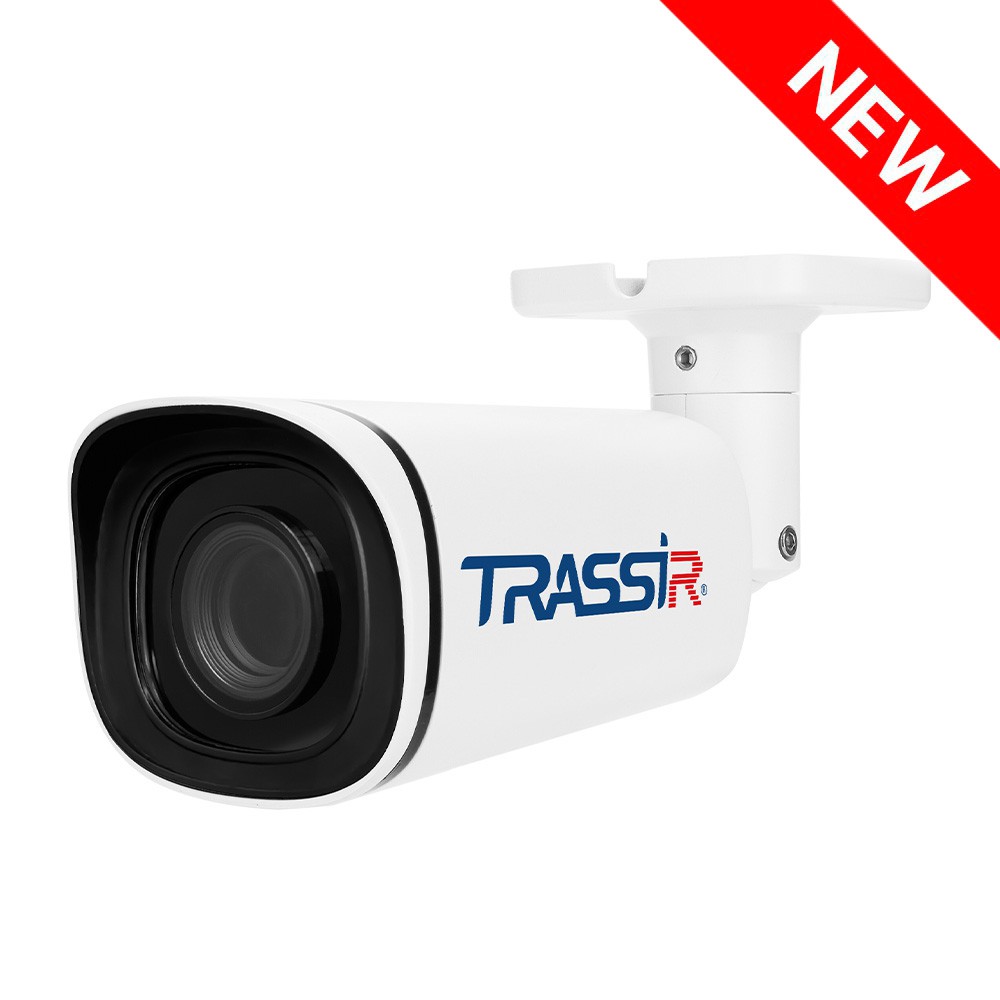

The TRASSIR TR-D2123ZIR6 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, ensuring reliable performance throughout the year, day or night. Its robust metal housing is rated IP67 for protection against dust and moisture and IK08 for resistance to mechanical impacts. The camera operates in extreme temperatures ranging from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – enhances image quality under high-contrast lighting
- 3D DNR – spatial noise reduction for improved low-light performance
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Vari-focal lens (2.7–13.5 mm) with horizontal viewing angle from 102° to 34°, vertical angle from 54° to 20°, and F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light under sufficient ambient lighting
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 9.8 W
- Dimensions: Ø234.3 × 77.5 × 75.3 mm
- Weight: 635 g
