TR-D6124IR10 v3 4.3-86
Ses:
audio in/out 1/1WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/10 000 secIR range:
up to 100 metersDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
PTZ hızlı kubbeWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
4.3-86Ağırlık Net (kg):
2.1 / 2.4Duyarlılık:
0.002Лк (F1.78)Yerel depolama:
MicroSD up to 256GBGiriş koruması:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
23WBoyutlar (mm):
Ø129 x 211Güç tüketimi, Watt:
PoE: 23W DC: 21WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H52.7°- 4.2°, V30.3°- 2.4°Class PoE:
802.3af/at

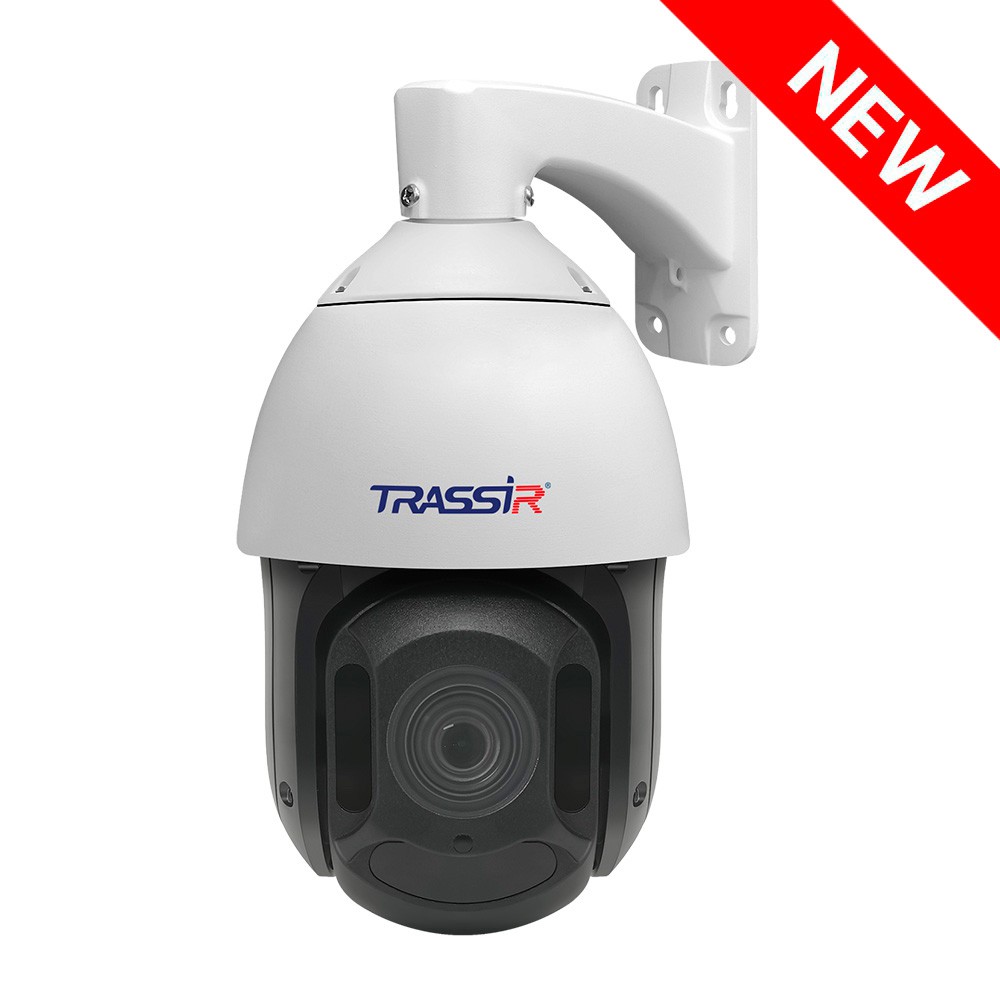

The 2 MP (1920×1080) rotating IP camera TRASSIR TR-D6124IR10 v3 4.3-86 is designed for outdoor use in all seasons. The housing meets the IP66 standard for dust and moisture protection, IK10 for mechanical impact resistance, and operates within a temperature range of –40 °C to +60 °C.
Functionality:
- Pan range: 0° to 360°, tilt range: –16° to 90°
- Pan speed: 0.1°/s to 200.0°/s, preset speed: 0.1°/s to 200.0°/s
- Tilt speed: 0.1°/s to 180.0°/s, preset speed: 0.1°/s to 180.0°/s
- 3D DNR – spatial noise reduction
- BLC – software backlight correction
- People detection, line crossing, and area control
- IR illumination with a range of 100 m
- Compression: H.265+, H.265, H.264
- Day/night mode with a mechanical IR filter that blocks infrared rays in sufficient light
- ROI – four fixed regions of interest
- MicroSD card slot supporting up to 256 GB
Specifications:
The TR-D6124IR10 v3 4.3-86 features a 1/2.8" CMOS sensor with a sensitivity of 0.002 lux. It has a motorized lens with a focal length range of 4.3 to 86 mm and an aperture range of F/1.78 to F/2.86. The horizontal viewing angle is 52.7° to 4.2°, and the vertical viewing angle is 30.3° to 2.4°. Autofocus is supported.
- Interfaces: Network port, audio input/output, alarm input/output
- Power supply: DC 12 V, PoE
- Power consumption: 23 W
- Dimensions: Ø129 × 211 mm
- Weight: 2.1 kg
