TR-D3361WDDL4 2.8

TR-D3361WDDL4 2.8

Demo rezervasyonu yapın Nasıl alınır

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

WDR (130 dB)

Frame rate:

Electronic shutter speed:

1 ~ 1/100,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Biçim katsayısı:

Kubbe

Wi-Fi:

Kamera izni:

6MP

Maksimum video çıkış çözünürlüğü:

3200x1800

Bit hızı (Mb/sec):

up to 16Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Ağırlık Net (kg):

0.63 / 0.88

Duyarlılık:

0.0005Lux (F1.0)

Yerel depolama:

MicroSD up to 512GB

Giriş koruması:

IP67, IK10

IR:

Yes

Case material:

Metal

Video input:

Yıldırımdan korunma:

TVS 4000V

Power PoE:

11.5 W

Boyutlar (mm):

Ø121.5 x 97.6

Güç tüketimi, Watt:

DC: 10.2 W PoE: 11.5 W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H108.8°±5°, V56.4°±5°

Class PoE:

802.3af/at

Genel bakış

TRASSIR TR-D3361WDDL4 (2.8 mm)

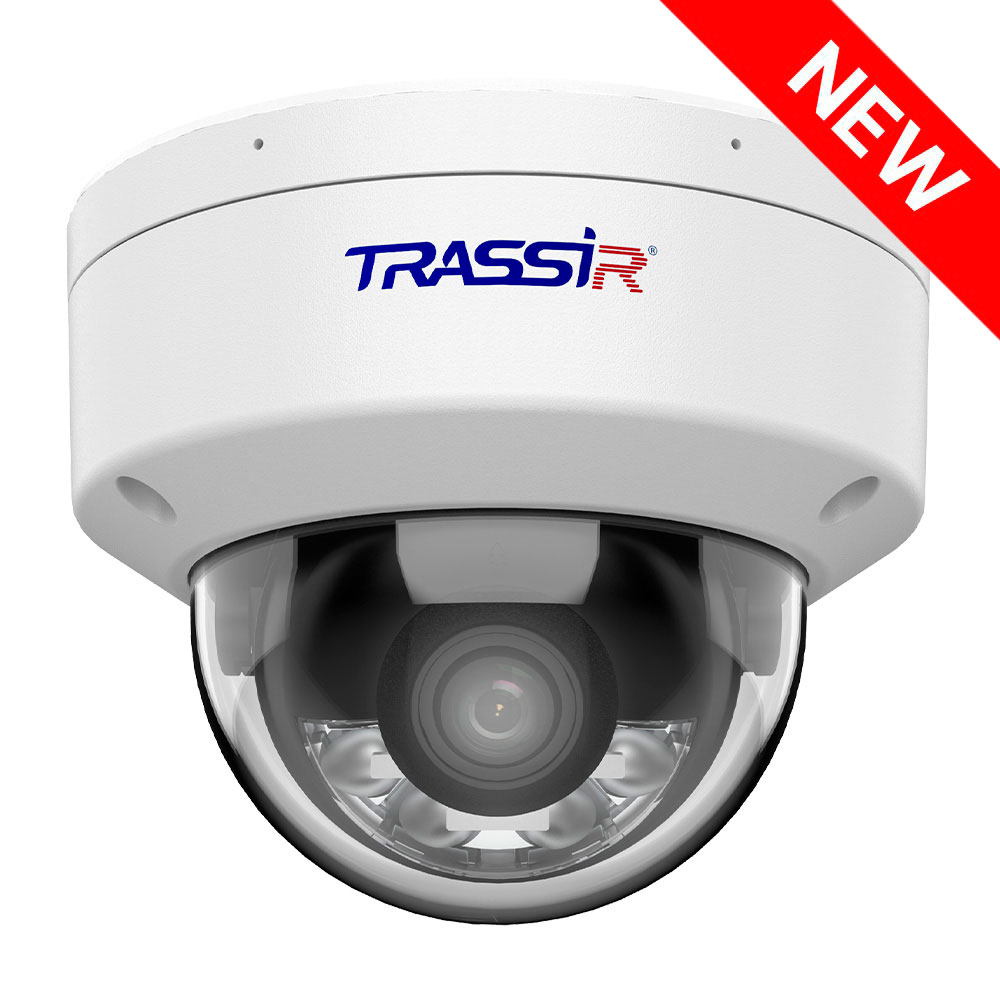

TRASSIR TR-D3361WDDL4 2.8 is a dome-style outdoor IP camera with dual intelligent illumination for 24/7 video monitoring. It features a 1/1.8" CMOS sensor and delivers images at a maximum resolution of 6 MP (3200 × 1800).

For poor lighting conditions, it provides Real WDR with a 130 dB dynamic range and 3D DNR noise reduction. The camera is equipped with IR illumination with a range of up to 40 meters and warm-white LED illumination with a range of up to 40 meters, enabling clear and informative video capture in complete darkness.

The camera supports H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with bitrates of up to 16 Mbps, simplifying video storage and transmission. It supports Edge Storage for local recording to a microSD card with a capacity of up to 512 GB and HotSwap support.

Built-in hardware analytics include people and face detection, line crossing detection, area intrusion monitoring, people counting, and vehicle detection. The camera is equipped with a built-in microphone, as well as audio input and output.

The camera is designed for outdoor installation and features an IP67- and IK10-rated enclosure, built-in 4000 V TVS surge protection, and an operating temperature range of −40 °C to +60 °C. Power can be supplied via PoE (802.3af, Class 3) or 12 V DC.

Belgeler

TR-D3361WDDL4 2.8.pdf
