TR-D2223WDZIR7 v3 2.7-13.5
Ses:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 70 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
İnce uzunWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Ağırlık Net (kg):
0.635 / 0.830Duyarlılık:
0.002Lux (F1.6)Yerel depolama:
MicroSD up to 512GBGiriş koruması:
IP67IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
11.2WBoyutlar (mm):
234.3 x 77.5 x 75.3Güç tüketimi, Watt:
DC: 9.5W PoE: 11.2WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H100°- 30°±5°, V55°- 19°±5°Class PoE:
802.3af/at

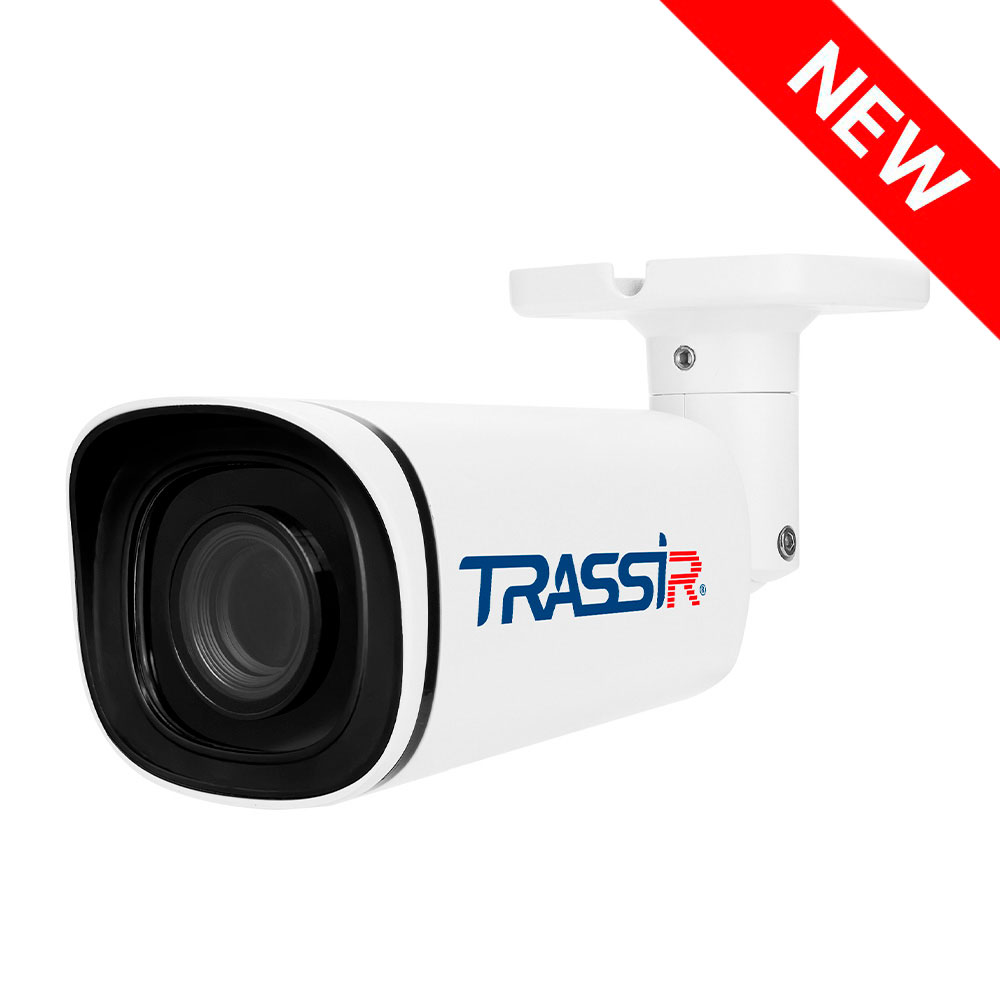

TRASSIR TR-D2223WDZIR7 v3 2.7–13.5 is a bullet-style IP camera designed for outdoor video surveillance. It features a metal housing and a 1/2.8" 2 MP CMOS sensor, delivering video at a resolution of 1920 × 1080 with a main stream of up to 25 fps (50 Hz) or 30 fps (60 Hz) and a bitrate of up to 8 Mbps.
For poor lighting conditions, it provides a mechanical IR cut filter (Day/Night), high sensitivity of 0.002 lux (F1.6), Real WDR with a 120 dB dynamic range, 3D DNR noise reduction, and corridor mode. A motorized 2.7–13.5 mm varifocal lens (motorized zoom) allows precise scene adjustment, and IR illumination with a range of up to 70 meters ensures reliable monitoring in the dark.
The camera supports H.265+ / H.265 / H.264 compression standards and common network protocols, including RTSP and ONVIF. It is equipped with a built-in microphone, 1/1 alarm inputs/outputs, and supports local storage via a microSD card of up to 512 GB. Power can be supplied via PoE (802.3af) or 12 V DC.
The housing is rated IP67 for dust and water protection and IK08 for impact resistance. The camera operates in temperatures from −40 °C to +60 °C.
TR-D2223WDZIR7 v3 2.7-13.5.pdf
