TR-D2153ZDL6 v7 2.7-13.5

TR-D2153ZDL6 v7 2.7-13.5

Demo rezervasyonu yapın Nasıl alınır

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/12 500 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Biçim katsayısı:

İnce uzun

Wi-Fi:

Kamera izni:

5MP

Maksimum video çıkış çözünürlüğü:

2560x1920

Bit hızı (Mb/sec):

up to 8Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Ağırlık Net (kg):

0.635 / 0.830

Duyarlılık:

0.0015 Lux (F1.6)

Yerel depolama:

MicroSD up to 512GB

Giriş koruması:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Yıldırımdan korunma:

TVS 4000V

Power PoE:

9.1 W

Boyutlar (mm):

234.3 x 77.5 x 73.4

Güç tüketimi, Watt:

DC: 7.8W PoE: 9.1 W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H90.6°- 28.5°±5°, V63.4°- 21.4°±5°

Class PoE:

802.3af/at

Genel bakış

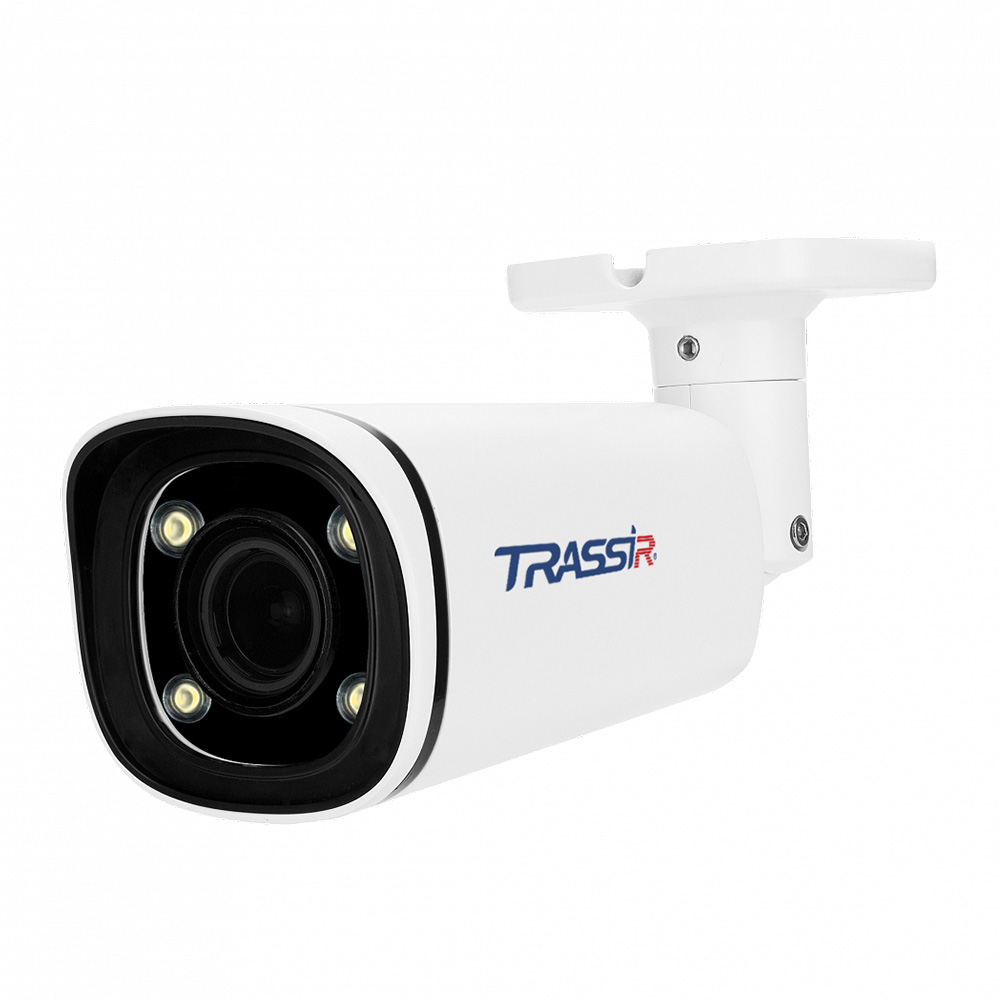

TRASSIR TR-D2153ZDL6 v7 (2.7–13.5 mm)

TRASSIR TR-D2153ZDL6 v7 2.7–13.5 is an outdoor bullet camera with dual intelligent illumination designed for 24/7 video surveillance. Equipped with a 1/2.8" CMOS sensor, the camera delivers images at a maximum resolution of 5 MP (2560 × 1920). The camera features a motorized 2.7–13.5 mm lens with horizontal viewing angles of 90.6°–28.5° ± 5° and vertical viewing angles of 63.4°–21.4° ± 5°, allowing the viewing angle to be adjusted to suit different surveillance tasks. Real WDR (120 dB) and 3D DNR help maintain image quality in challenging lighting conditions. The camera features IR illumination with a range of up to 60 m and neutral-white LED illumination with a range of up to 60 m, providing clear video in low-light and nighttime conditions. Built-in hardware analytics include human detection, line-crossing detection, area monitoring, and vehicle detection.

For efficient video transmission, the camera supports H.265+, H.265, H.264, and MJPEG codecs with a maximum bitrate of 8 Mbps. A MicroSD card slot supports local recording with storage capacities of up to 512 GB. The camera can be powered via 802.3af PoE or 12 V DC. IP67 and IK08 protection ratings, an operating temperature range of -40°C to +60°C, and TVS 4000 V lightning protection provide reliable operation in demanding outdoor environments. The camera supports a range of network protocols, including ONVIF.

Belgeler

TR-D2153ZDL6 v7 2.7-13.5.pdf
