TR-D2221WDIR4 v3 3.6

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Biçim katsayısı:

İnce uzun

Wi-Fi:

-

Kamera izni:

2MP

Maksimum video çıkış çözünürlüğü:

1920x1080

Bit hızı (Mb/sec):

up to 8Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Ağırlık Net (kg):

0.460 / 0.565

Duyarlılık:

0.003Lux (F1.8)

Yerel depolama:

MicroSD up to 512GB

Giriş koruması:

IP67

IR:

Yes

Case material:

Metal

Video input:

No

Yıldırımdan korunma:

TVS 4000V

Power PoE:

5.0W

Boyutlar (mm):

184.7 x 66.5 x 63.05

Güç tüketimi, Watt:

DC: 4.0W PoE: 5.0W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H87°±5°, V48°±5°

Class PoE:

802.3af/at
Genel bakış

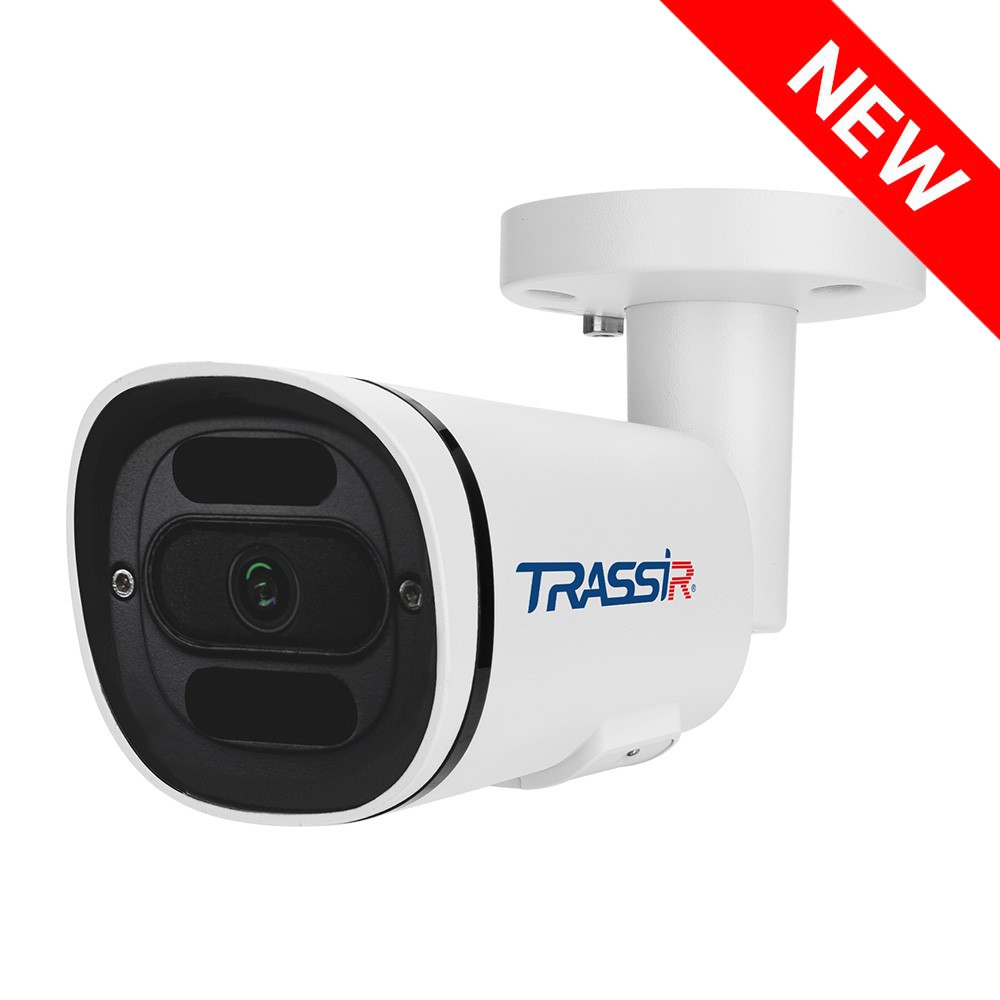

TRASSIR TR-D2221WDIR4 v3 (3.6 mm)

2 MP (1920×1080) IP Camera TRASSIR TR-D2221WDIR4 v3 3.6 Designed for year-round outdoor use, featuring housing protected from moisture and dust (IP67), with an operating temperature range of -40 °C to +60 °C, TVS 4000 lightning protection, and integrated IR illumination with a range of 40 meters.


Functionality:
    • Face detection, motion detection, people detection, line crossing, area intrusion, loitering detection, vehicle detection, people counting
    • Real WDR 120 dB – reduces the impact of high-contrast lighting on image quality
    • 3D DNR – spatial noise reduction
    • Corridor mode – vertically oriented shooting
    • Defog – increases contrast to reduce the effects of fog and smoke
    • BLC – backlight compensation
    • IR illumination with a range of 40 meters
    • Compression: H.265+, H.265, H.264
    • Main stream: 25–30 fps at 1920×1080, 1280×960, 1280×720
    • Sub stream: 25–30 fps at 1280×720, 720×576, 640×480
    • Third stream: 25–30 fps at 720×576, 640×480, 640×240

Specifications:

The TR-D2221WDIR4 v3 3.6 is built on a 1/2.8-inch CMOS sensor with a sensitivity of 0.003 lux. Supports day/night mode with ICR: in sufficient light, the filter blocks IR rays for optimal color reproduction, while in low light it mechanically shifts away from the sensor to increase sensitivity.

    • Bitrate: up to 8 Mbps
    • Fixed lens: focal length 3.6 mm; horizontal viewing angle 87° ± 5°; vertical viewing angle 48° ± 5°; aperture F/1.8
    • Built-in microphone for audio monitoring
    • RJ-45 network port and microSD slot supporting up to 512 GB
    • Power supply: DC 12 V, PoE
    • Maximum power consumption: 5.0 W
    • Dimensions: 184.7 × 66.5 × 63.05 mm
    • Weight: 460 g
