TR-D2121IR3 v7 3.6

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Biçim katsayısı:

İnce uzun

Wi-Fi:

-

Kamera izni:

2MP

Maksimum video çıkış çözünürlüğü:

1920x1080

Bit hızı (Mb/sec):

up to 8Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Ağırlık Net (kg):

0.460 / 0.565

Duyarlılık:

0.005Lux (F1.6)

Yerel depolama:

MicroSD up to 256GB

Giriş koruması:

IP67

IR:

Yes

Case material:

Metal

Video input:

No

Yıldırımdan korunma:

TVS 4000V

Power PoE:

5.6W

Boyutlar (mm):

184.7 x 66.5 x 63.05

Güç tüketimi, Watt:

DC: 3.8W PoE: 5.6W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H88°±5°, V48°±5°
Genel bakış

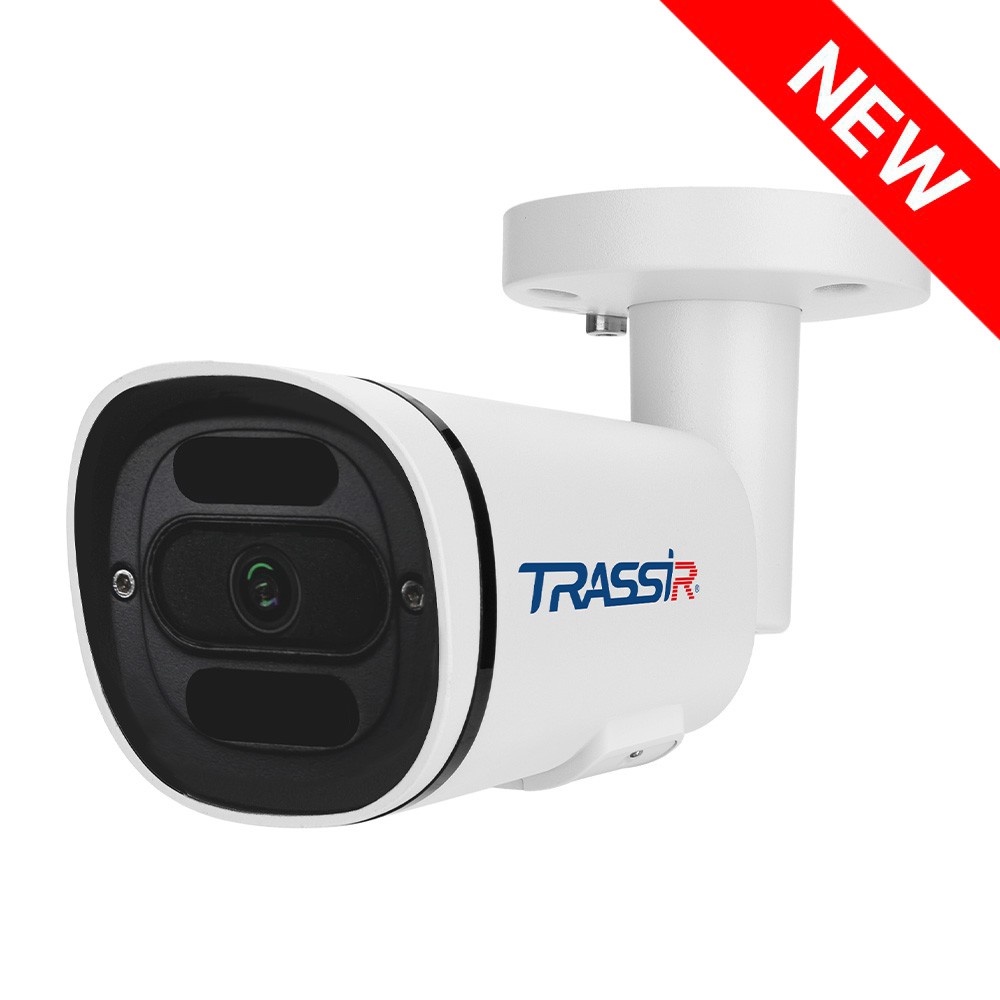

TRASSIR TR-D2121IR3 v7 (3.6 mm)

The TRASSIR TR-D2121IR3 v7 3.6 is a 2 MP (2560×1920) IP camera designed for outdoor use in high-access areas, functioning reliably in any season, day or night. Its durable metal housing is rated IP67 for protection against dust and moisture. The camera operates in extreme temperatures ranging from -40 °C to +60 °C and includes TVS 4000 V lightning protection. Integrated IR illumination provides visibility up to 35 meters in low-light conditions.


Parameters:
  • Blackface IR illumination technology
  • Detection capabilities: people, vehicles, line crossing, area entry and exit
  • Real WDR 120 dB – improves image quality in high-contrast lighting conditions
  • 3D DNR – spatial noise reduction for enhanced clarity
  • Corridor mode – optimized for vertically oriented scenes
  • 1/2.8" CMOS sensor with 0.005 lx minimum illumination
  • Fixed 3.6 mm lens with 88° horizontal and 48° vertical field of view, F/1.6 aperture
  • Mechanical IR cut filter – blocks infrared light in adequate lighting conditions
  • Video compression formats: H.265+, H.265, H.264
  • Built-in microphone
  • SD card slot supporting up to 256 GB (hot-swappable)
  • Interfaces: network port, audio input, audio output, reset button
  • Power supply: DC 12 V or PoE
  • Maximum power consumption: 3.8 W
  • Dimensions: Ø184.7 × 66.5 × 63.05 mm
  • Weight: 460 g
