TR-D2121DL3 v7 2.8
Ses:
audio in/out 1/1 / built-in microphoneWDR:
WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
NoBiçim katsayısı:
İnce uzunWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
2.8Ağırlık Net (kg):
0.400 / 0.465Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 512GBGiriş koruması:
IP67IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
5.5WBoyutlar (mm):
Ø68 x 172.3Güç tüketimi, Watt:
DC: 6.0W PoE: 5.5WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H102.5˚, V55˚Class PoE:
802.3af/at

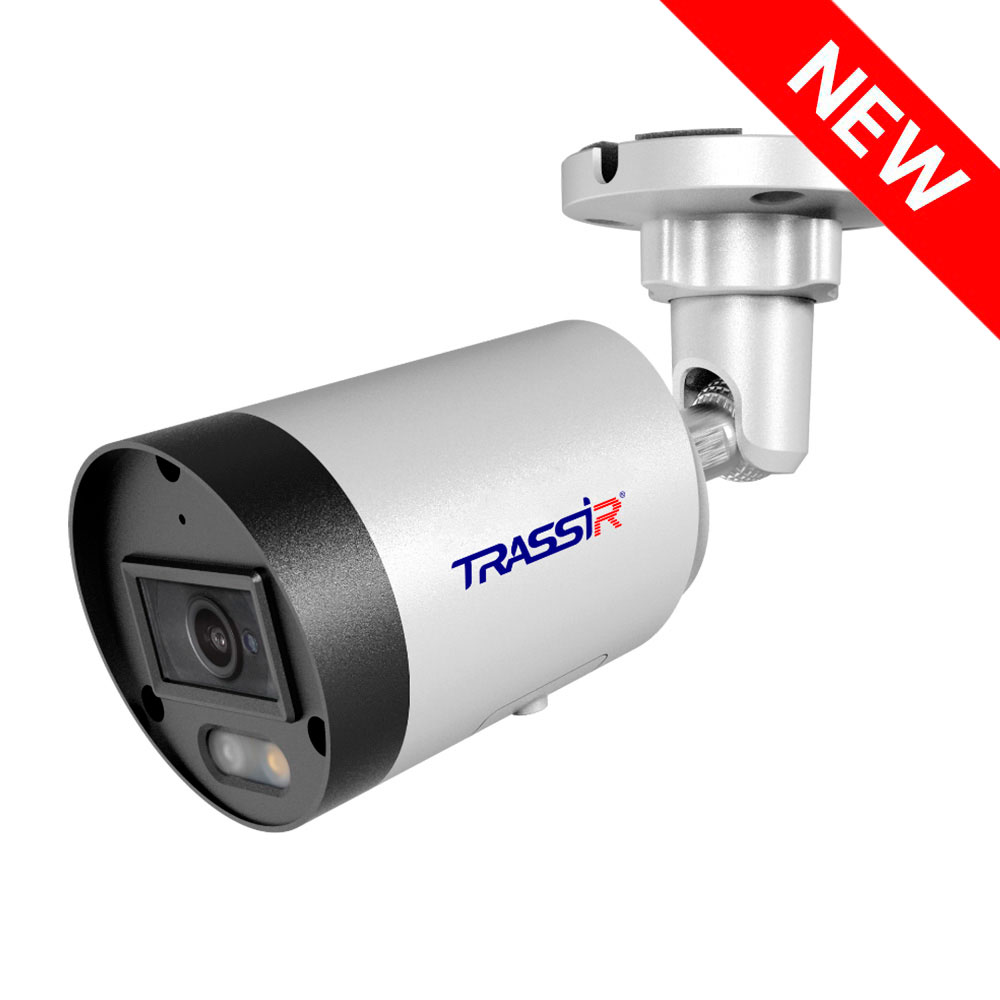

TRASSIR TR-D2121DL3 v7 2.8 is an outdoor bullet camera featuring dual intelligent illumination for 24/7 video surveillance. Equipped with a 1/2.9" CMOS sensor, it delivers up to 2 MP resolution (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear images even in challenging lighting conditions.
The camera offers IR illumination and warm white LED lighting, each with a range of up to 30 meters, enabling detailed video capture in low-light environments. It also supports hardware analytics, including people detection, line crossing detection, area monitoring, and vehicle detection.
For efficient video transmission, the camera supports H.265+ and H.264+ codecs with a maximum bitrate of 8 Mbps. Local recording is supported via a microSD card of up to 512 GB. Power can be supplied through 802.3af PoE or 12V DC.
Designed for durability, the IP67-rated enclosure operates in temperatures from -40°C to +60°C and features 6000V TVS protection. The camera is compatible with multiple network protocols, including Onvif.
TR-D2121DL3 v7 2.8.pdf
