TR-D3121IR3 v7 3.6
Ses:
audio in/out 1/1 / built-in microphoneWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesBiçim katsayısı:
KubbeWi-Fi:
-Kamera izni:
2MPMaksimum video çıkış çözünürlüğü:
1920x1080Bit hızı (Mb/sec):
up to 8MbpsGüç kaynağı:
PoE (802.3af) / 12V DCLens (mm):
3.6Ağırlık Net (kg):
0.45 / 0.58Duyarlılık:
0.005Lux (F1.6)Yerel depolama:
MicroSD up to 256GBGiriş koruması:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoYıldırımdan korunma:
TVS 4000VPower PoE:
5.1WBoyutlar (mm):
Ø116.10 x 96.51Güç tüketimi, Watt:
DC: 4.0W PoE: 5.1WÇalışma sıcaklığı, C°:
-40°C … +60°CField of view:
H88°±5°, V48°±5°

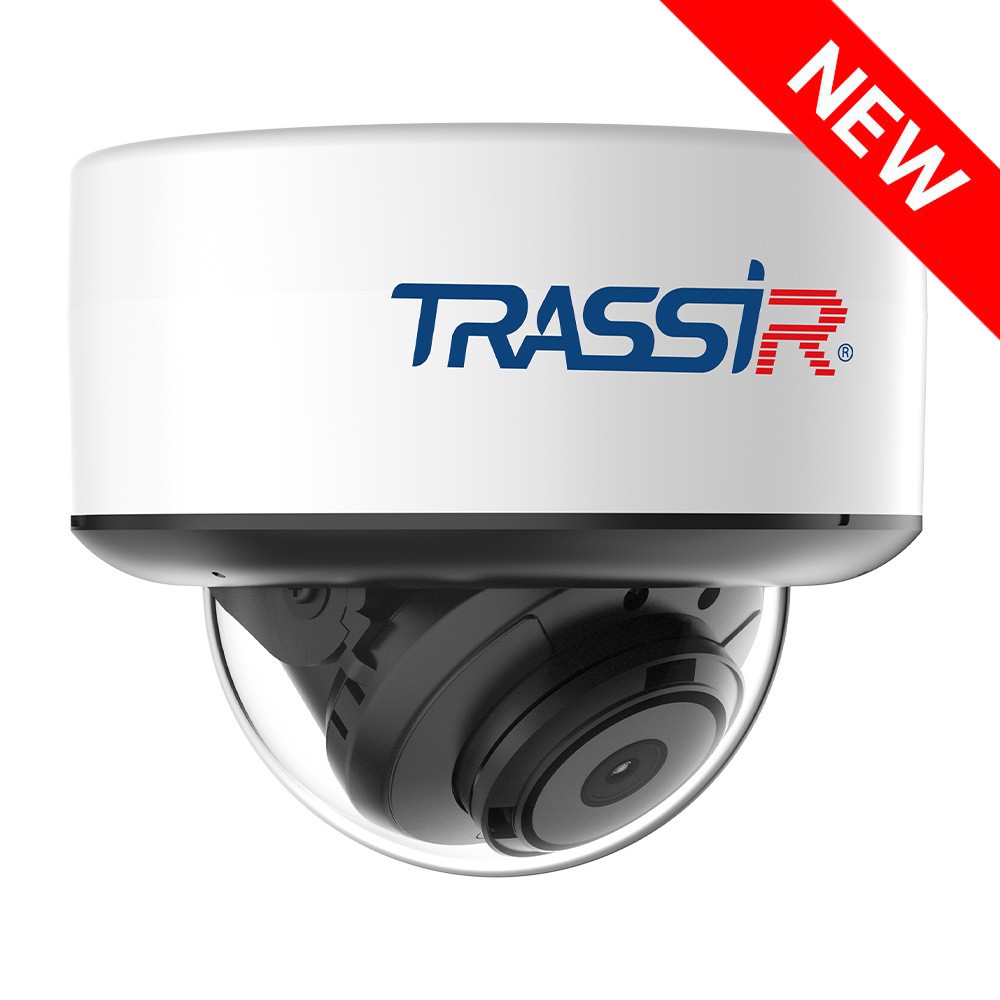

The TRASSIR TR-D3121IR3 v7 3.6 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, delivering reliable performance throughout the year, day or night. Its durable metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera operates within a temperature range of –40 °C to +60 °C, includes TVS 4000 V lightning protection, and features integrated IR illumination with a range of up to 30 meters.
Parameters:
- Blackface IR illumination technology
- Detection capabilities: people, vehicles, line crossing, area entry and exit
- Real WDR 120 dB – improves image quality in scenes with high-contrast lighting
- 3D DNR – spatial noise reduction for enhanced low-light performance
- Corridor mode – ideal for vertically oriented field of view
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 3.6 mm lens with 88° horizontal and 48° vertical field of view, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light under sufficient ambient illumination
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 4.0 W
- Dimensions: Ø116.10 × 96.51 mm
- Weight: 450 g
TR-D3121IR3 v7 3.6.pdf
