TR-D2183ZIR6 v7 2.7-13.5

Demo rezervasyonu yapın Nasıl alınır

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Biçim katsayısı:

İnce uzun

Wi-Fi:

Kamera izni:

8MP

Maksimum video çıkış çözünürlüğü:

3840x2160

Bit hızı (Mb/sec):

up to 16Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5

Ağırlık Net (kg):

0.816 / 0.980

Duyarlılık:

0.006Lux (F1.6)

Yerel depolama:

MicroSD up to 512GB

Giriş koruması:

IP67

IR:

Yes

Case material:

Metal

Video input:

Yıldırımdan korunma:

TVS 2000V

Power PoE:

8.8W

Boyutlar (mm):

215.8 x 76 x 76

Güç tüketimi, Watt:

DC: 10W PoE: 8.8W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H101°-32°, V53°-18°

Class PoE:

802.3af/at

Genel bakış

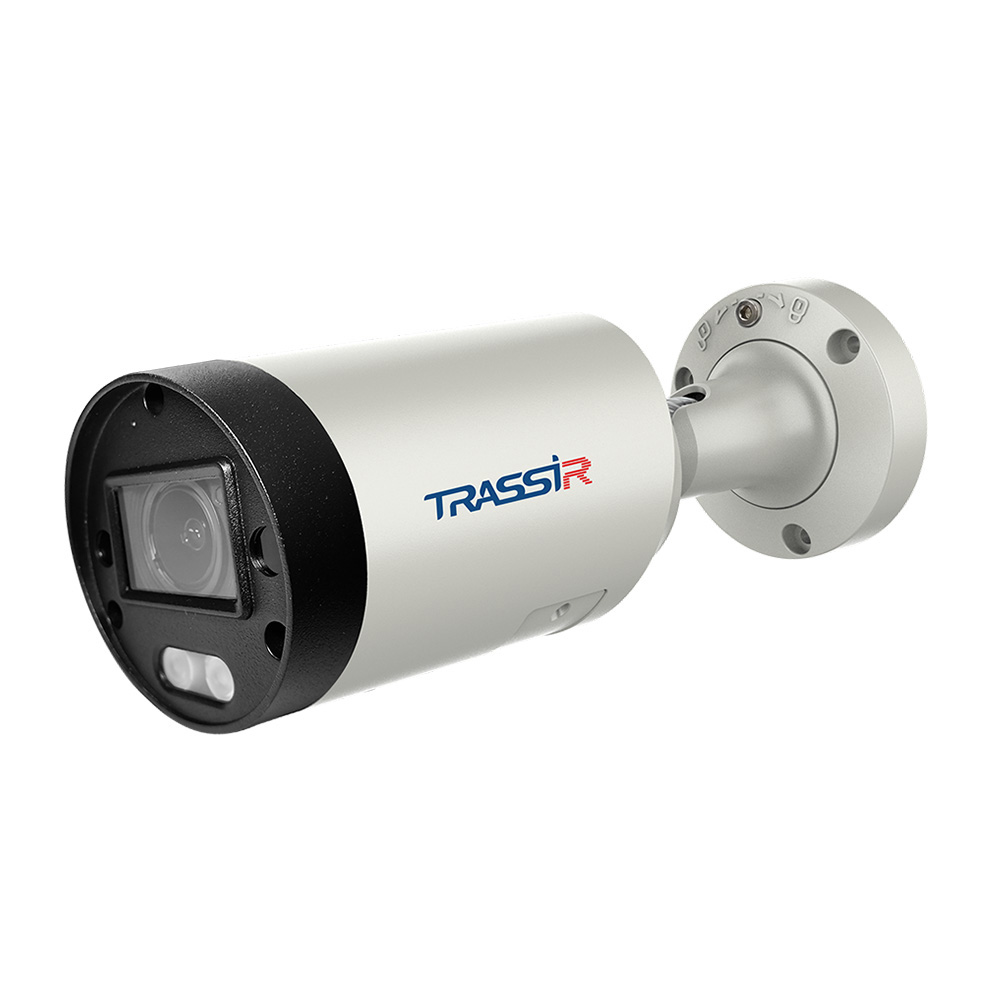

TRASSIR TR-D2183ZIR6 v7 (2.7-13.5 mm)

TRASSIR TR-D2183ZIR6 v7 2.7–13.5 mm is a bullet camera designed for 24/7 outdoor surveillance. Equipped with a 1/2.7" CMOS sensor, the camera delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). A motorized 2.7–13.5 mm varifocal lens allows the focal length and focus to be adjusted to suit the desired viewing distance and monitoring area.

120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 60 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.

The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.

The camera's metal enclosure, IP67 protection rating, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.

Belgeler

TR-D2183ZIR6 v7 2.7-13.5.pdf
