TR-D2181IR5 v7 2.8

Demo rezervasyonu yapın Nasıl alınır

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 50 m

Digital noise Reduction:

3D DNR

Corridor mode:

Biçim katsayısı:

İnce uzun

Wi-Fi:

Kamera izni:

8MP

Maksimum video çıkış çözünürlüğü:

3840x2160

Bit hızı (Mb/sec):

up to 16Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Ağırlık Net (kg):

0.400 / 0.465

Duyarlılık:

0.006Lux (F1.6)

Yerel depolama:

MicroSD up to 512GB

Giriş koruması:

IP67

IR:

Yes

Case material:

Metal

Video input:

Yıldırımdan korunma:

TVS 2000V

Power PoE:

6.6W

Boyutlar (mm):

Ø68 x 172.3

Güç tüketimi, Watt:

DC: 6.0W PoE: 6.6W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H110°, V59°

Class PoE:

802.3af/at

Genel bakış

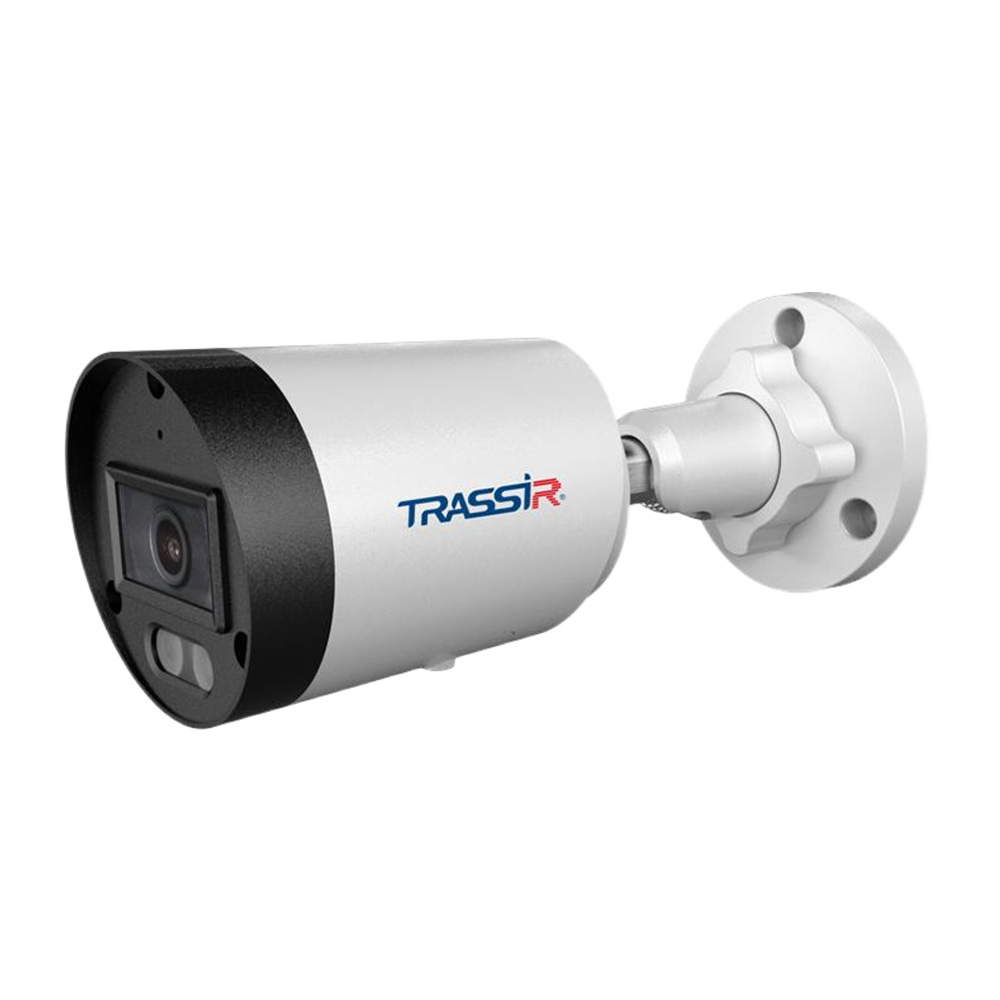

TRASSIR TR-D2181IR5 v7 (2.8 mm)

TRASSIR TR-D2181IR5 v7 2.8 is a bullet camera designed for 24/7 outdoor surveillance. Equipped with a 1/2.7" CMOS sensor, it delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The camera features a 2.8 mm fixed-focal-length lens. 120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 50 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.

The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.

The camera's metal housing, IP67 protection rating, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.

Belgeler

TR-D2181IR5 v7 2.8.pdf
