TR-D2253WDZIR7 v3 2.7-13.5

TR-D2253WDZIR7 v3 2.7-13.5

Demo rezervasyonu yapın Nasıl alınır

Teknik özellikler

Ses:

audio in/out 1/1 / built-in microphone

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 70 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Biçim katsayısı:

İnce uzun

Wi-Fi:

Kamera izni:

5MP

Maksimum video çıkış çözünürlüğü:

2592x1920

Bit hızı (Mb/sec):

up to 8Mbps

Güç kaynağı:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Ağırlık Net (kg):

0.635 / 0.830

Duyarlılık:

0.002Lux (F1.6)

Yerel depolama:

MicroSD up to 512GB

Giriş koruması:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Yıldırımdan korunma:

TVS 4000V

Power PoE:

12.2W

Boyutlar (mm):

234.3 x 77.5 x 75.3

Güç tüketimi, Watt:

DC: 9.2W PoE: 12.2W

Çalışma sıcaklığı, C°:

-40°C … +60°C

Field of view:

H94°- 28°±5°, V70°- 22°±5°

Class PoE:

802.3af/at

Genel bakış

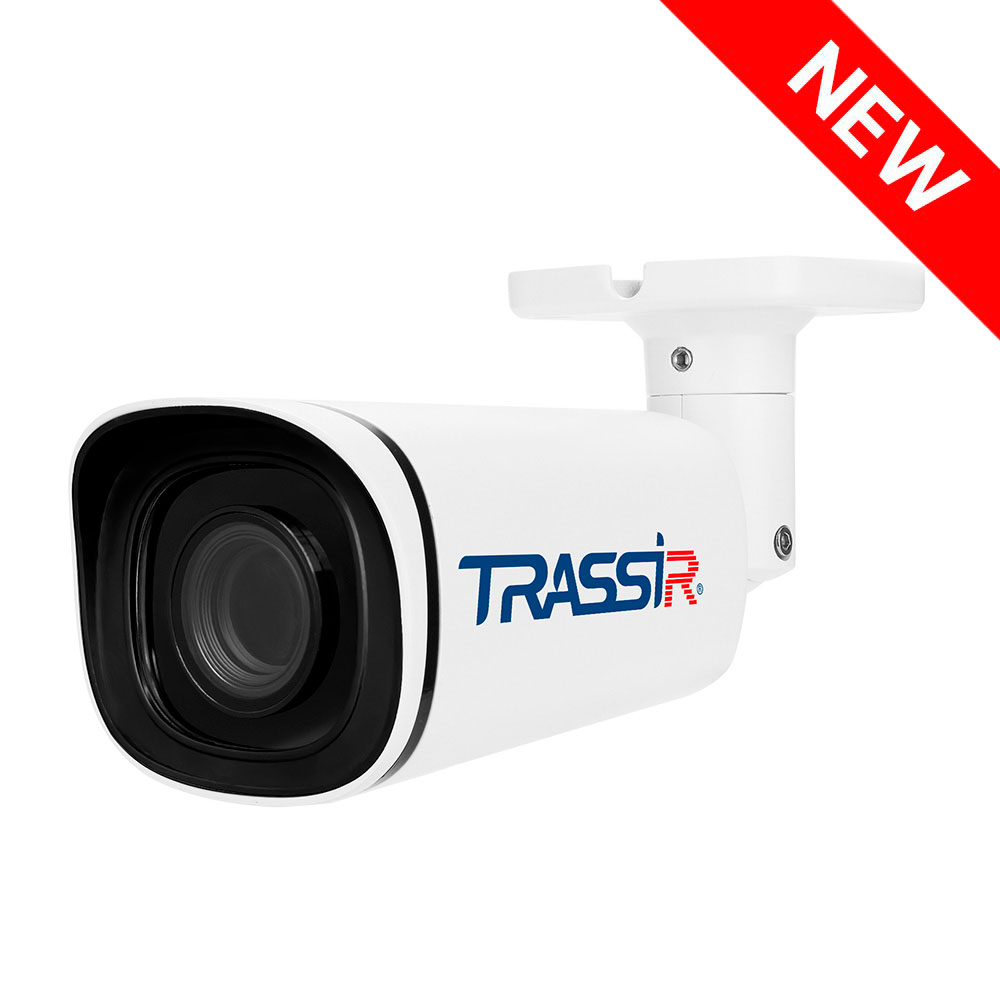

TRASSIR TR-D2253WDZIR7 v3 (2.7-13.5 mm)

The TRASSIR TR-D2253WDZIR7 v3 2.7–13.5 IP camera is designed for outdoor video surveillance and security systems, delivering detailed 5 MP images at a resolution of 2592 × 1920. This bullet-style camera features a 2.7–13.5 mm varifocal lens with motorized zoom and IR illumination with a range of up to 70 meters, simplifying scene setup and enabling reliable low-light monitoring.

A mechanical IR cut filter, Real WDR with a dynamic range of 120 dB, 3D DNR noise reduction, and corridor mode ensure stable performance in challenging lighting and environmental conditions. The camera supports H.265+ / H.265 / H.264 video compression with bitrates of up to 8 Mbps, as well as streaming at up to 25/30 fps depending on the selected mode.

Built-in video analytics include people detection, line crossing detection, area intrusion monitoring, visitor counting, and vehicle and face detection. Network connectivity and power are provided via PoE (802.3af) or 12 V DC, and local storage is supported via a microSD card with a capacity of up to 512 GB.

The metal housing is rated IP67 for dust and water protection and IK08 for impact resistance. The camera is designed to operate in temperatures from −40 °C to +60 °C and is backed by a 5-year warranty.

Belgeler

TR-D2253WDZIR7 v3 2.7-13.5.pdf
